Model : HS-5930

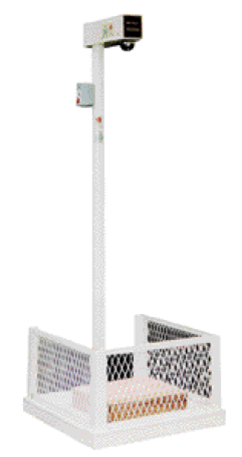

- The falling impact tester is used for evaluating the
- impact strength of plastic mold and pipe, hard film,
- decorative plywood, coating film, etc.
- A steel ball as a specified load held by magnet holder
is dropped by making off the magnetic switch, to
inspect the state of fracture of strain of the object of measurement.
- Applications : JIS K5400, K6718, K6745, etc.
- Falling Height : 500 ~ 1000 mm
- Falling Interval : 50 mm
- Drop Weight (Steel Ball)
Ø1” (Ø25.4 mm), 67 gf
Ø1.5” (Ø38.1 mm), 225 gf
Ø2” (Ø50.8 mm), 534 gf
Ø2.5” (Ø63.5 mm), 1040 gf
- Ball Holding Device : Electromagnetic Type
- Electromagnetic Capacity (Holding Capacity) : 20 kgf
- Safety Device : Wire Netting Guard
- Electric Source : AC 220V 60Hz
- Dimensions : 500X600X1400 mm, 50 kg
