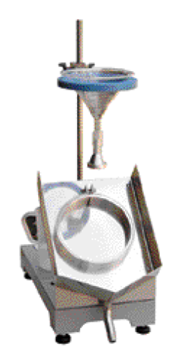

Model : HS 4550

- Testing Method : JIS L1092, K7125, K8145, KS K0590
- Specimen Size : 200 × 200 mm (7”×7”)
- Nozzle Hole No. : 19 Holes
- Hole Diameter : Ø0.9 mm (0.035”)
- Water Volume : 250 cc at 27±2℃
- Spray Speed : 25 ~ 30 sec
- Inclination of Specimen : 45°
- Diameter of Funnel : Ø152.4 mm (6”)
- Dimensions : 260×320×500(WDH)mm
- Weight : 7 kg
